Frac heads - Goat Head

Frac head- Goat Head is the equipment often used on frac tree and frac stack during fracturing work,which is often in studded and flange-end connections.CCSC's frac head are own various sizes and inlets used to tie multiple frac lines into the frac tree we can also design many type of the frac head as per the requirements.

frac head

“Goat Head” flanged Style Frac Head


threaded Style Frac Head

Inlet Style Frac Head
“Goat Head” threaded Style Frac Head   “Inlet” Style Frac Head

Frac head inquiry information

Our Frac heads are available in DD and EE trim,customers may customize their purchase through the following data:
• Working Pressure
• Type of Top Connection
• Type of Bottom Connection
• Through-Bore Minimum Width
• Number of Side Connections
• Side Connection Branch Angle
• Side Connection Branch, Type, and Pressure Rating

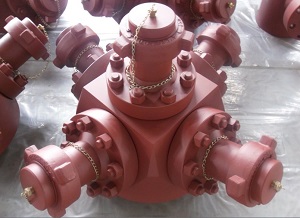

frac head picture

CCSC's customizable frac heads allow customers to design their ideal frac head for reliable and consistent performance on their frac system.
