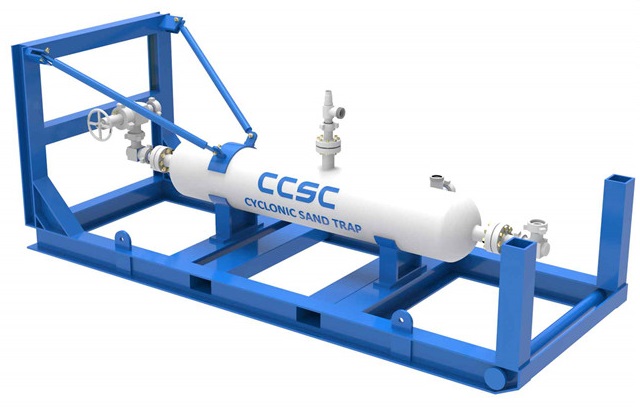

Cyclonic Sand Separator - Cyclonic Sand Trap
Cyclonic sand separator provided by CCSC is a pressurized vessel used to separate sand from liquid, it's also designed for flowback of effluent containing proppant following a fracture treatment.
We can provide 5K 24" OD x 8' S/S cyclonic sand separator, which is ideally for low pressure applications, it's light, easy loading and moving.
We can provide 10K 24" OD x 8' S/S cyclonic sand trap for high pressure application.
We can also provide 10K 30" OD x 10' S/S cyclonic sand trap for the clients who need the equipment with big handling capality, 10000BPD liquid and 35 MMSCF/D.
Our cyclonic sand separator sand remove ability: 100% of 100 mesh (0.15mm), 97% of 200 mesh (0.075mm)
Available Specification
| 1 | Dimension | 24"OD x 8'S/S, 30" x 10' S/S |
| 2 | Working Pressure | 5000PSI, 10000PSI, 15000PSI |
| 3 | Working Temperature | -20 -250 deg F |
| 4 | Body Material | AISI 4130 |
| 5 | Design Code | ASME VIII, ANSI B31.3, NACE MR 0175, API 6A(PSL-3) PR 2, c/w 'U' stamp |
| 6 | Liquid Capacity | 6000BPD, 10000BPD |
| 7 | Gas Capacity | 25 MMscf/d, 35 MMscf/d |
| 8 | Sand remove ability | 100% of 0.15mm (100 mesh) sand, 97% of 0.075mm (200 mesh) sand is removed |
| 9 | Choke system | 3 1/16” 10K Adjustable choke can be provided in the sand dumping line |
| 10 | Skid Type | L shape skid for ease of lifting and erection at the time rig up and loading |
