Ball injector - Ball dropper

Ball Injector – Ball dropper is ball drop tool which is often used on acidizing and fracturing application, for engaging and or activating mechanisms in down hole tools, our ball injector& ball launcher is reliable and high efficient tool during pump the frac balls into the frac stream

We have rich experience on ball dropper solutions, there are some different structure for the customer to choose as below

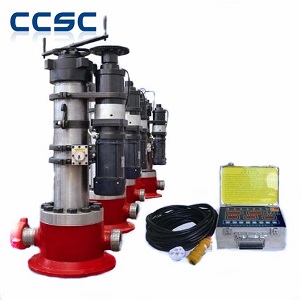

Model A: Conventional Fracturing ball injector

This model A ball injector can be used for both remote control by electric control box and manual operation by workers. During the operation, the same size balls are installed on the system, it can inject many balls with same size one time according to the need.

Bore Size	Number of Balls	Injection Pressure	Working Pressure
Φ16～Φ22 (Customizable)	379 Max.(Customizable)	8,500PSI	15,000PSI

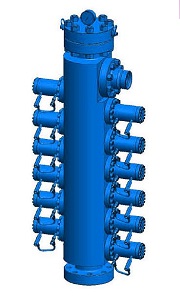

Model B: Staged fracturing ball injector - dropper

This model B ball injector/ball dropper is a kind of ball drop tool which is usually used for staged fracturing service. Our ball injector ball dropper is installed on the top of the frac head with 12 balls capacity and pressure rating up to 15000 psi.

Nominal size	API SPEC.6A ,4-1/16”15000 PSI
Ball size	Max.Φ95.25 mm, Min.Φ38.1 mm, Total 12 pcs
System flow	＞4 m³/Min
Driving Mode	Hydraulic driven（25Mpa)
Outlet connection	4-1/16”15000 PSIx3”1502 female Union
