API 6A Gate Valve

API 6A Gate Valve provided by CCSC are field proven valves which strictly designed and manufactured according to API 6A and API Spec Q1 by forging or casting AISI 4130/4140 low alloy or AISI 410 SS steel. Some extreme materials for extreme service, such as Inconel or Duplex stainless steel are available as well.

CCSC brand API 6A Manual Slab gate valve

CCSC Gate Valve was developed to satisfy the need for a high quality reliable valve which is reasonably priced. All CCSC Gate valve makes full use of modern materials and manufacturing techniques. It is easy to maintain, conforms to international design requirements and Quality Assurance Programme. they are manufactured to API 6A Specification as a basic minimum, in a Plant that is API Q1 and ISO9001 approved and Certified.

CCSC API 6A Gate Valve feature:

  • Forged or Cast Body & Bonnet,
  • Metal-to-Metal seal, gate to seat, seat to body, bonnet seal and stem backseat.
  • Bi-directional Sealing,
  • All internal parts can be inline changed.
  • Heavy duty thrust bearing is used to absorb stem thrust and reduce operating torque.
  • Non-rising stem made by Alloy-nitrided or 17-4 stainless steel, the pressure in the body cavity will not increase during valve operation, can replace stem packing under pressure.

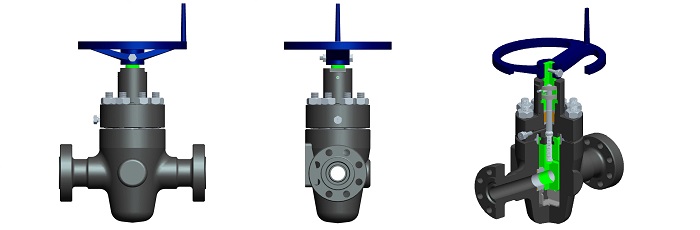

CCSC API 6A Gate Valve and parts


Avalaible Specication

  • Bore Size: 1 13/16" - 9"
  • Working Pressure: 2,000PSI - 20,000PSI
  • Material Class: AA - HH
  • Working Temperature: 75°F - 350°F
  • PSL 1-4
  • PR 1-2
